Comprehensive Guide to the C4 Model for Software Architecture Documentation

1. Introduction to the C4 Model

The C4 model is a for visualizing and documenting software architecture. It provides a structured way to describe a software system at different levels of abstraction, making it accessible to both technical and non-technical stakeholders.

Why Use the C4 Model?

  • Clarity: It breaks down complex systems into manageable levels.
  • Consistency: It enforces a standardized approach to documentation.
  • Flexibility: It can be used for small applications or large-scale enterprise systems.
  • Collaboration: It facilitates communication between developers, architects, and business stakeholders.

2. The Four Core Levels of the C4 Model

Level 1: System Context Diagram

Purpose: Shows how the software system fits into its environment. Key Concepts:

  • People (Actors): Users or external systems interacting with the system.
  • Systems: External software systems (e.g., databases, APIs, third-party services).

Example: For an Internet Banking System, the context diagram would show:

  • Personal Customers (people)
  • Mainframe Banking System (external system)
  • E-mail System (external system)

Audience: Technical and non-technical stakeholders.

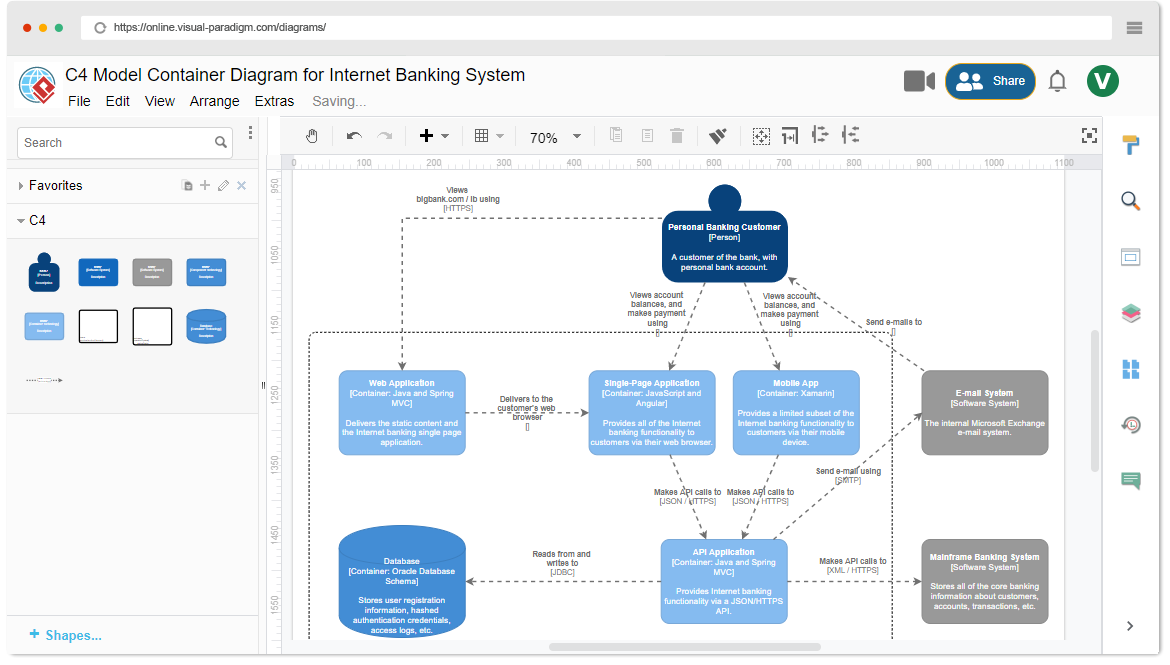

Level 2: Container Diagram

Purpose: Opens the “black box” of the system to reveal its high-level technical building blocks. Key Concepts:

  • Containers: Independently deployable units (e.g., web apps, microservices, databases).
  • Technology Choices: Programming languages, frameworks, and data storage solutions.

Example: For the Internet Banking System, the container diagram might include:

  • Single-Page Application (Angular)
  • Web Application (Java/Spring MVC)
  • API Application (Java/Spring MVC)
  • Database (MySQL)

Audience: Architects and developers.

Level 3: Component Diagram

Purpose: Zooms into a single container to show its internal structure. Key Concepts:

  • Components: Logical groupings of related code/functionality.
  • Responsibilities: What each component does.
  • Interactions: How components communicate.

Example: For the API Application container, the component diagram might show:

  • Spring MVC Rest Controllers
  • Repository Components (for database access)
  • Mainframe Banking System Facade

Audience: Technical team members.

Level 4: Code-Level Diagrams

Purpose: Illustrates low-level implementation details. Key Concepts:

  • UML Class Diagrams: Show classes, interfaces, and relationships.
  • Optional: Often derived directly from the source code.

Example: A UML class diagram for the Mainframe Banking System Facade component.

Audience: Software developers.

3. Key Concepts of the C4 Model

  • The C4 model allows users to zoom in and out, from the big picture (System Context) to granular details (Code).
  • Each level builds on the previous one, ensuring consistency.

  • A container is any separately runnable or deployable unit (e.g., a microservice, a database).
  • Communication between containers often involves network calls.

Consistency and Scoping

  • A Component Diagram is always scoped within a specific Container.
  • Components reside inside containers and are not independently deployable.

Optional Detail (Level 4)

  • Code-level diagrams are optional because developers can often derive this information from the source code.

4. Visual Paradigm’s C4 Ecosystem



Comprehensive C4 Model Scope

  • Supports all six C4 diagram types (Context, Container, Component, System Landscape, Dynamic, Deployment).
  • Enforces hierarchical clarity and consistency.

Extensive Visual Modeling Features

  • : Assists in drafting initial content for diagrams.
  • Multi-Platform Modeling: Supports UML, SysML, ERD, BPMN, and ArchiMate.
  • Professional Toolkit: Includes custom attributes, lifecycle management, and smart features.

AI-Driven Compliance and Workflow

  • Standards Enforcement: Automatically applies C4 notation and best practices.
  • : Translates natural language into PlantUML code.
  • : Allows users to refine diagrams via text prompts.

5. Practical Examples

Example 1: Internet Banking System

  • System Context Diagram: Shows the banking system, personal customers, and external systems.
  • Container Diagram: Reveals the web app, API, and database.
  • Component Diagram: Details the API’s internal structure.
  • Code-Level Diagram: UML class diagram for the Mainframe Banking System Facade.

Example 2: E-Commerce Platform

  • System Context Diagram: Shows the e-commerce system, customers, payment gateways, and shipping services.
  • Container Diagram: Includes the frontend (React), backend (Node.js), and database (MongoDB).
  • Component Diagram: Details the backend’s microservices (e.g., Order Service, Payment Service).
  • Code-Level Diagram: UML class diagram for the Order Service.

6. Best Practices for Using the C4 Model

  1. Start with the System Context: Begin with the big picture before diving into details.
  2. Keep Diagrams Simple: Avoid clutter; focus on clarity.
  3. Use Consistent Notation: Stick to C4 standards for diagrams.
  4. Leverage AI Tools: Use tools like Visual Paradigm for automation and compliance.
  5. Iterate and Refine: Update diagrams as the system evolves.

7. Conclusion

The C4 model is a powerful framework for documenting software architecture. By breaking down systems into hierarchical levels, it ensures clarity, consistency, and collaboration. Tools like Visual Paradigm enhance the process with AI-driven features, making it easier to create and maintain C4 diagrams.

Next Steps:
