How to Model Constraints in UML? [With Examples]

Introduction to UML Constraints

A constraint is an expression that constrains the semantics of a UML element. It must always be true—in other words, it is a restriction on an element that limits its usage. Constraints are essential for ensuring that your models accurately reflect business rules, system requirements, and design intentions.

Constraints can be:

• Predefined in UML (such as association XOR constraints)

• User-defined using formal expressions (OCL), semiformal notation, or human-language formulations

💡 Key Insight: A constraint is one of UML’s three extensibility mechanisms—alongside Stereotypes and Tagged Values—allowing you to add new rules or modify existing ones to extend the semantics of UML building blocks.

A constraint is rendered as a string enclosed by curly braces {} and placed near the associated element.

---

Understanding Constraint Fundamentals

What Makes a Valid Constraint?

A constraint is a Boolean expression that restricts the extension of an associated element beyond what is imposed by other language constructs. For a model to be well-formed, all constraints must evaluate to true.

Notation Rules

{ constraint-expression }

• Enclosed in curly braces {}

• Placed near the element it constrains

• Can adorn basic notation to visualize specifications without graphical cues

Common Use Cases

Use Case	Example Constraint
Association properties	{ordered}, {unique}, {readOnly}
Multiplicity rules	{must have at least one manager}
Business rules	{salary > minimumWage}
Temporal constraints	{startDate < endDate}

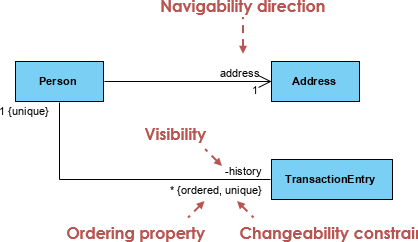

Properties like order and changeability in associations are rendered using constraint notation.

---

UML Constraint Examples

Constraints specify conditions that must hold true for your model to be valid. While you can write constraints as free-form text, for precise semantics, use UML’s Object Constraint Language (OCL).

OCL vs. Natural Language Constraints

Approach	Pros	Cons	Best For
OCL (Formal)	Precise, machine-checkable, unambiguous	Steeper learning curve, verbose	Critical business rules, code generation
Natural Language	Easy to write, accessible to stakeholders	Ambiguous, not machine-processable	Early design, stakeholder communication
Semiformal	Balance of precision and readability	May still require interpretation	Team documentation, iterative design

Example OCL Constraint:

context Order
inv: self.items->size() > 0

Ensures every Order has at least one item.

---

Defining Smarter Constraints with Generative AI

Writing formal expressions like OCL can be complex. Modern AI-powered tools simplify identifying, formulating, and applying business rules to your UML diagrams.

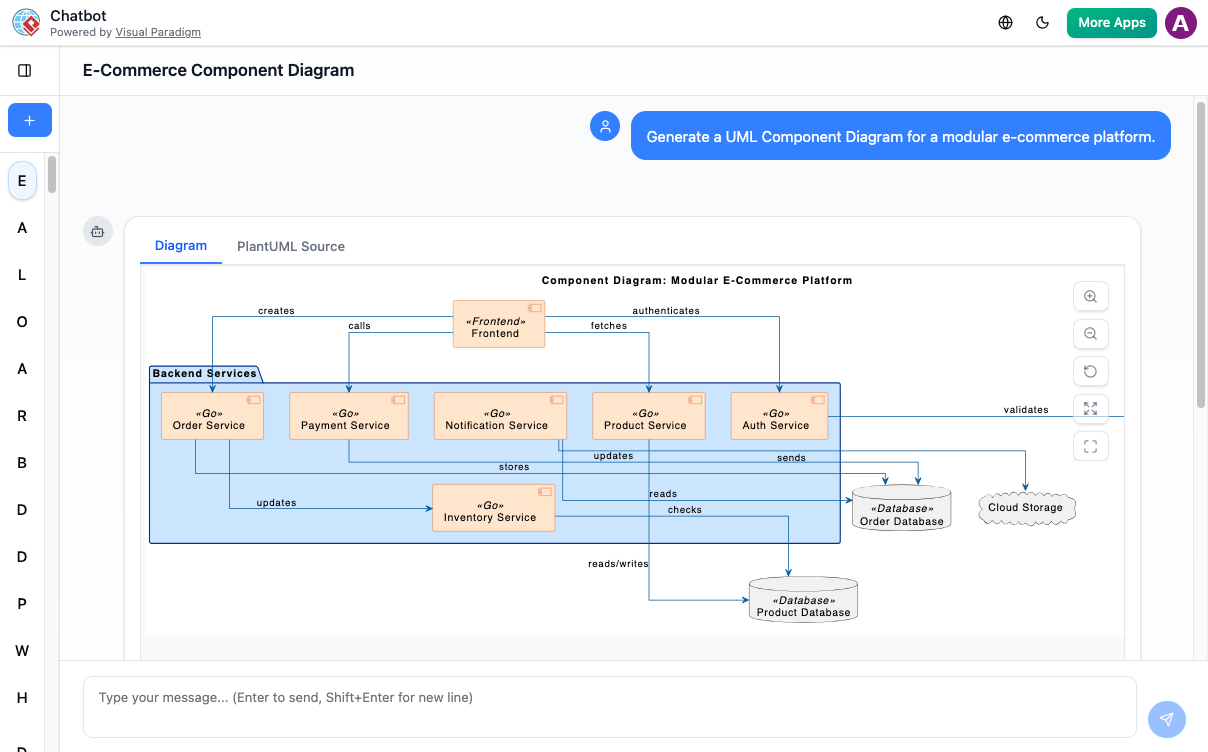

🤖 AI Diagram Chatbot

https://chat.visual-paradigm.com/

Describe business rules in plain English and let AI suggest appropriate UML diagrams and constraints.

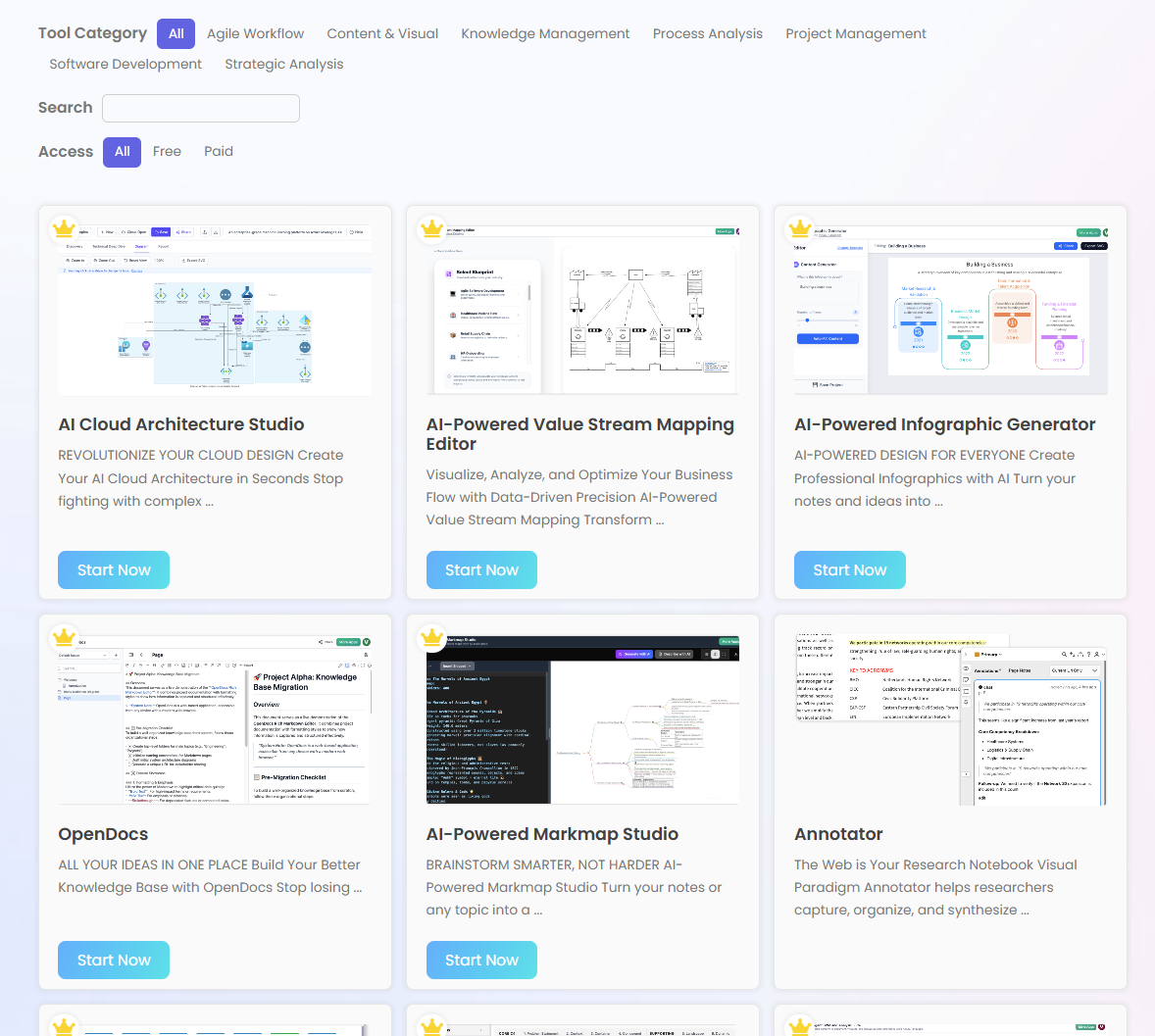

🌐 AI WebApps

https://ai.visual-paradigm.com/

A step-by-step guided journey to build and evolve complex models with automated logic checks.

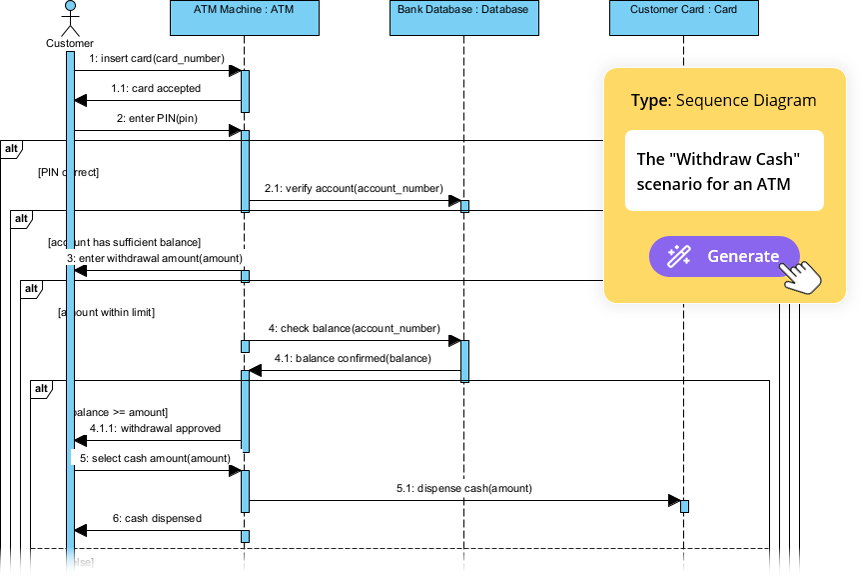

⚡ AI Diagram Generator

https://guides.visual-paradigm.com/visual-paradigm-ai-diagram-generation-guide/

Instantly generate UML diagrams with AI from natural language prompts.

📝 OpenDocs

https://ai.visual-paradigm.com/tool/opendocs

Document your system and maintain a clear version history of architectural rules in an AI-powered hub.

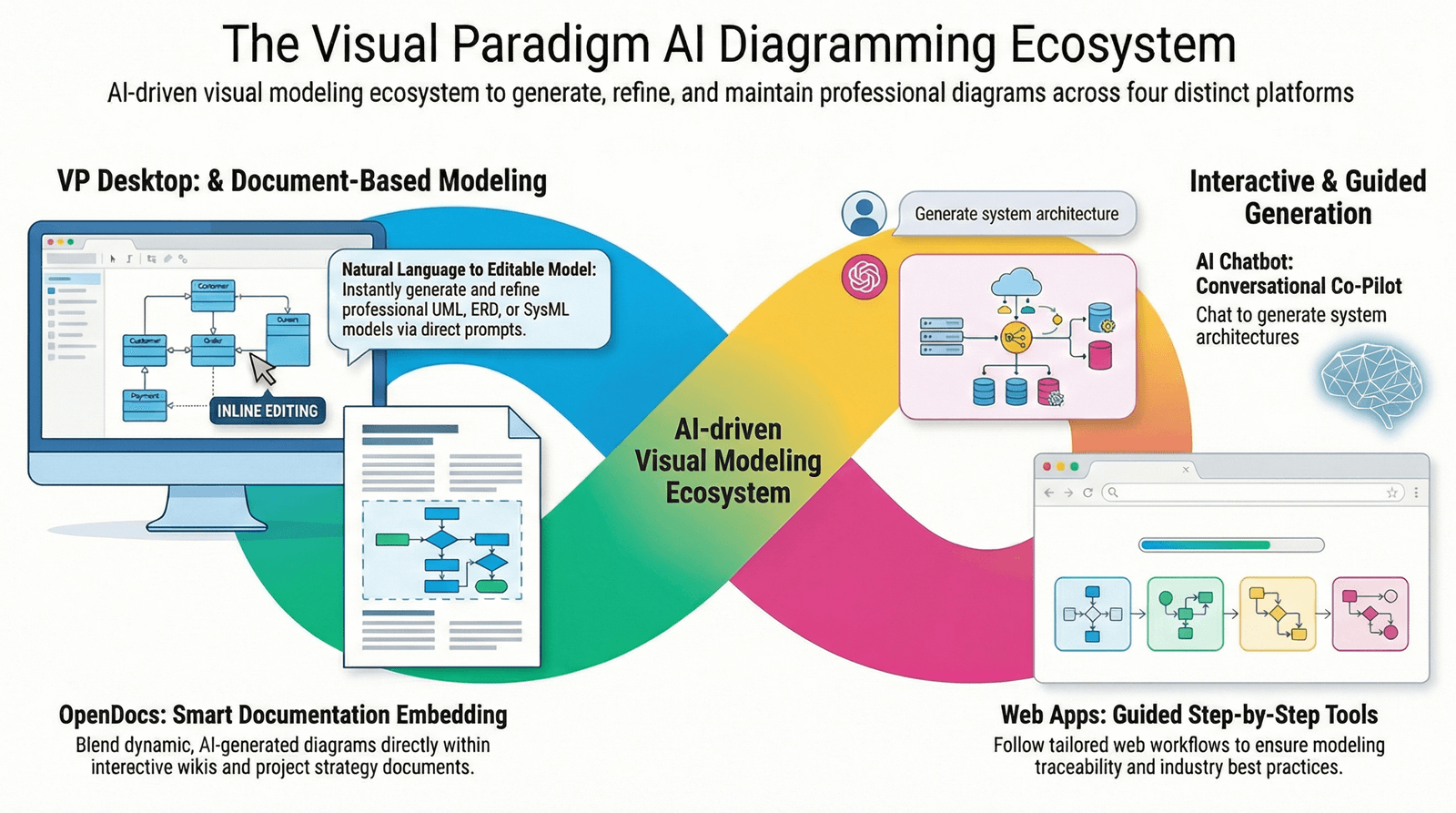

🔗 Explore the Complete AI Diagram Generation Ecosystem →

---

Practical Constraint Applications

1. Constraints for Class Operations

You can constrain class operations to enforce specific behavioral rules. For example, constrain an EventQueue class so that all additions maintain order:

Implementation Example:

class EventQueue {
  +add(event: Event): void {ordered}
  +remove(): Event
}

The {ordered} constraint ensures events are processed in the sequence they were added.

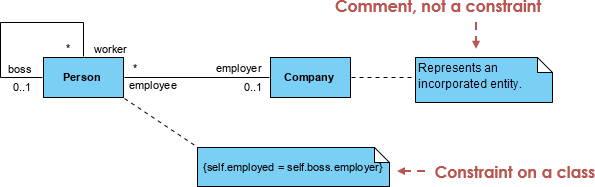

2. Constraints in a Note

Notes provide a flexible mechanism to capture arbitrary comments and constraints that help illuminate your models. They can represent:

• Requirements artifacts

• Free-form observations

• Review comments

• Explanatory context

Best Practices for Note-Based Constraints:

• Use notes for constraints that span multiple elements

• Link notes to elements with dashed lines for clarity

• Keep note text concise but unambiguous

• Reference note IDs in formal documentation for traceability

3. Constraints in Class Dependencies

Complex relationships often require nuanced constraints. Consider this organizational model:

Model Interpretation:

• Each Person may be a member of zero or more Departments

• Each Department must have at least one Person as a member

• Each Department must have exactly one Person as manager

• Each Person may manage zero or more Departments

Constraint Notation:

{manager role: 1..1}
{member role: 0..*}
{cannot manage own department}  // Business rule constraint

---

Advanced Constraint Modeling Techniques

Combining Multiple Constraints

Elements can have multiple constraints. List them sequentially within the same brace block or use separate blocks for clarity:

{salary >= minSalary} {salary <= maxSalary}
// or
{minSalary <= salary <= maxSalary}

Parameterized Constraints

Use parameters to make constraints reusable across similar elements:

{threshold: Integer}
context Account
inv: self.balance >= threshold

Constraint Inheritance

Constraints on superclass attributes/operations apply to subclasses unless explicitly overridden:

class Account {
  +balance: Decimal {>= 0}
}

class SavingsAccount extends Account
// Inherits {balance >= 0} constraint

Temporal and State-Based Constraints

Model time-dependent rules using state machine integration:

context Order
inv: self.status = 'Shipped' implies self.shipDate.oclIsDefined()

---

Tool Support: Visual Paradigm for Professional UML Modeling

Visual Paradigm provides a comprehensive, professional-grade modeling environment that fully supports the UML 2.x standard, augmented by an AI-powered ecosystem for automated diagram generation and architectural analysis.

🛠️ UML Modeling Tool Support

The platform supports all 14 standard UML diagrams, bridging the gap between requirements and implementation:

Feature	Description
Standard Diagrams	Full support for Class, Use Case, Sequence, Activity, State Machine, Component, Deployment, Package, Object, Composite Structure, Timing, Interaction Overview, Communication, and Profile diagrams
Code Engineering	Bidirectional round-trip engineering: generate source code (Java, C++, PHP, Python, etc.) from diagrams or reverse-engineer existing code into UML models
Database Design	Synchronize Class diagrams with Entity Relationship Diagrams (ERD) and generate Hibernate ORM mapping tiers
IDE Integration	Operate directly within Eclipse, IntelliJ IDEA, NetBeans, Visual Studio, and Android Studio
Traceability & Linking	Model Transitor links elements across diagram types; sub-diagrams enable multi-level elaboration
Team Collaboration	Concurrent editing with automatic version control, conflict resolution, and PostMania cloud-based commenting

🤖 AI-Powered Support

The integrated AI engine acts as a “creative co-pilot,” transforming text-based requirements into actionable designs:

AI Capability	Benefit
Instant Diagram Generation	Use natural language prompts to create Class, Sequence, State Machine, and Use Case diagrams instantly
Conversational Editing	Modify models via AI Chatbot: “Add a PaymentGateway class” or “Refactor Student into a superclass”
Architectural Analysis & Critique	AI performs quality checks, identifies design flaws (tight coupling, circular dependencies), and generates analysis reports
“Ask Your Diagram”	Query visual models as a knowledge base to generate summaries, proposals, or technical documentation
Design Pattern Mastery	Instruct AI to automatically apply patterns: Singleton, Factory, Observer, etc.

---

Best Practices for Modeling Constraints

✅ Do:

• Use OCL for critical, machine-checkable constraints

• Keep natural-language constraints clear and unambiguous

• Place constraints close to the elements they constrain

• Document complex constraints in accompanying notes

• Validate constraints early in the design process

❌ Avoid:

• Over-constraining elements unnecessarily

• Mixing formal and informal notation without clear delineation

• Placing constraints far from their target elements

• Using constraints to fix poor structural design

Constraint Validation Checklist

1. Is the constraint logically consistent with the model?

2. Can the constraint be verified (manually or automatically)?

3. Is the notation clear to all stakeholders?

4. Does the constraint add value without over-complicating the model?

5. Are dependencies between constraints documented?

---

Conclusion

Modeling constraints in UML is essential for creating precise, reliable, and maintainable system designs. Whether you use formal OCL expressions, semiformal notation, or natural language, constraints ensure your models enforce the rules that matter.

By leveraging modern tools like Visual Paradigm—with its comprehensive UML 2.x support and AI-powered assistance—you can:

• Model constraints more efficiently

• Validate business rules early

• Generate documentation and code automatically

• Collaborate effectively with technical and non-technical stakeholders

Start applying constraints thoughtfully in your next UML model, and watch your designs become more robust, communicative, and implementation-ready.

---
