Understanding Abstraction in the ArchiMate Language


In the intricate world of Enterprise Architecture, effective communication is paramount. Architects need a language that not only captures the complexity of organizational systems but also provides a means for clear communication among stakeholders. The ArchiMate language emerges as a powerful tool in this context, allowing architects to abstract and refine complex structures for better comprehension.

Abstraction in Systems Design

The ArchiMate language adopts the principles of abstraction and refinement, essential concepts in systems design. The first layer of abstraction lies in the distinction between external and internal views. The external view focuses on what the system must do for its environment, while the internal view delves into the intricacies of how it achieves these objectives. This black-box and white-box approach is fundamental in comprehending system behavior.

Another layer of abstraction comes through the differentiation between behavior and active structure. Behavior delineates what the system must perform, while active structure encapsulates the constituents—people, applications, and infrastructure—responsible for executing these behaviors. This distinction aids in both modeling new systems and analyzing existing ones, offering a versatile perspective.

The ArchiMate language introduces a third layer of abstraction with the conceptual, logical, and physical levels. Rooted in data modeling, these levels represent a progression from conceptual elements (business objects) through logical elements (data objects) to physical elements (artifacts). This conceptual framework aligns with the business’s informational needs, logical structuring for information systems, and the physical storage of information.

Logical and Physical Abstraction in Applications

The distinction between logical and physical elements extends beyond data modeling to applications. The TOGAF Enterprise Metamodel incorporates entities for business, data, application, and technology components and services. Logical components provide implementation-independent encapsulations of functionality, while physical components represent tangible software components and devices. This logical-physical dichotomy facilitates the evolution of Enterprise Architectures from abstract descriptions to concrete, implementation-level designs.

The ArchiMate language offers three modeling approaches for these abstractions. First, behavior elements can be used to model logical components, with corresponding active structure elements representing physical components. Second, the concept of realization, working from the Technology Layer upwards, captures the relationship between physical and logical components. Third, logical and physical components can be defined as metamodel-level specializations, adding another layer of granularity to the modeling process.

Concepts and Notation

Crucially, the ArchiMate language distinguishes between concepts and their notation. Unlike some other modeling languages with standardized notations, ArchiMate acknowledges the need for flexibility. Stakeholder groups may require different visualizations to understand an architecture model. The viewpoint mechanism (detailed in ArchiMate manual: Chapter 13), allows architects to define stakeholder-oriented visualizations. While the notation may vary, a common graphical notation is provided for architects and model developers, aligning with existing technical modeling techniques like ERDs, UML, or BPMN.

Use of Nesting

Nesting, the practice of placing elements inside others, serves as an alternative graphical notation in the ArchiMate language. This technique (explored further in ArchiMate Manual Chapter 5) provides a visual representation of relationships within the model.


In the ever-evolving landscape of Enterprise Architecture, the ArchiMate language stands out as a versatile and comprehensive tool. Through the strategic use of abstraction, it allows architects to navigate the complexity of systems, from high-level conceptualizations to detailed physical implementations. The language’s emphasis on flexible notation and the incorporation of nesting techniques further enhance its applicability, ensuring effective communication across diverse stakeholder groups. In essence, ArchiMate facilitates a shared understanding of complex architectures, promoting collaboration and informed decision-making in the realm of enterprise design.

Enhancing ArchiMate Modeling with Visual Paradigm

Now that we’ve explored the intricacies of the ArchiMate language in Enterprise Architecture, you might be wondering: “What’s the best tool to bring these concepts to life?” Look no further than Visual Paradigm, a powerful and user-friendly solution that seamlessly integrates with ArchiMate for effective modeling and design.

Intuitive ArchiMate Modeling

Visual Paradigm provides an intuitive and feature-rich environment for ArchiMate modeling. Its user-friendly interface allows architects and modelers to effortlessly translate abstract ideas into tangible visual representations. With a wide range of ArchiMate elements and relationships readily available, you can swiftly create models that capture the essence of your enterprise architecture.

Comprehensive ArchiMate Support

Visual Paradigm doesn’t just stop at providing basic ArchiMate elements. It offers comprehensive support for all layers of abstraction, from conceptualization to implementation. Whether you’re focusing on behavior, active structure, or the logical and physical aspects of your architecture, Visual Paradigm’s ArchiMate toolkit has got you covered.

Flexible Notation Options

Just as the ArchiMate language acknowledges the need for different notations for diverse stakeholders, Visual Paradigm empowers you with flexible notation options. Tailor your visualizations to meet the specific needs of different audiences, ensuring clear communication and understanding across the board.

Collaborative Modeling

Collaboration is at the heart of successful enterprise architecture endeavors. Visual Paradigm facilitates seamless collaboration among team members. With real-time collaboration features, distributed teams can work together on ArchiMate models, fostering a culture of teamwork and innovation.

Documentation and Analysis

Effective modeling isn’t just about creating visually appealing diagrams; it’s also about documentation and analysis. Visual Paradigm provides robust documentation tools to annotate your models comprehensively. Furthermore, it supports analysis features that help you assess the impact of changes and make informed decisions throughout the architectural lifecycle.

Why Visual Paradigm?

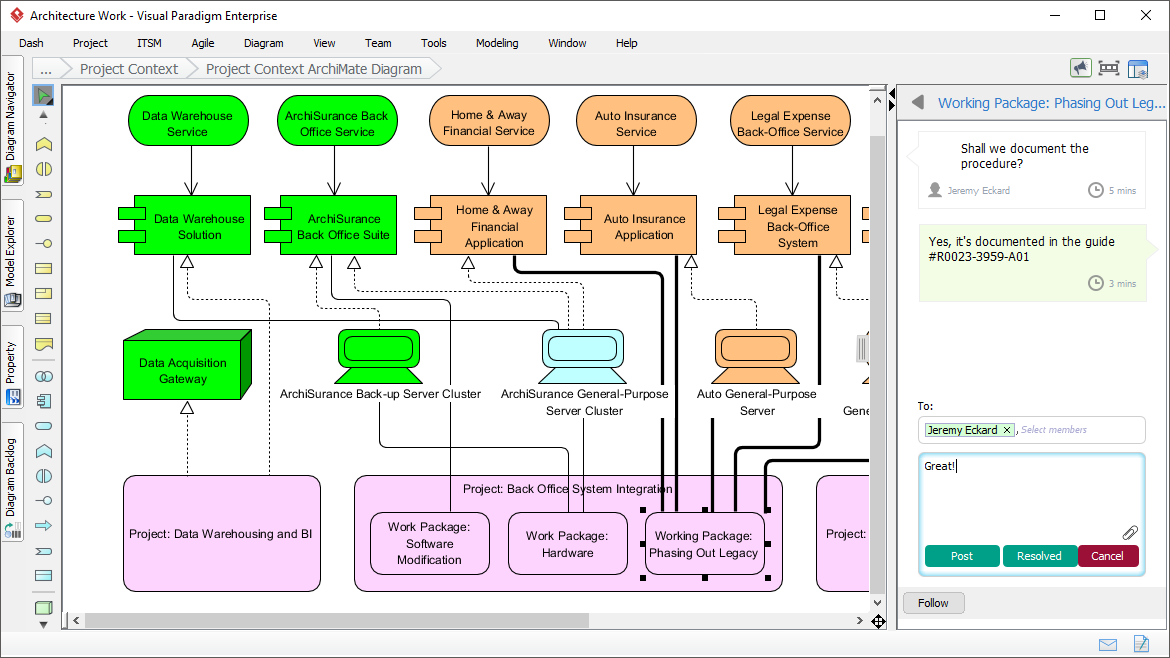

Gather feedback on ArchiMate diagram
