Mastering UML Sequence Diagrams: Combined Fragments & Advanced Notations

Real-world software systems are rarely linear. In the idealized world of a basic interaction, a user clicks a button and a single response comes back. However, in production environments, systems must handle complex logic, infinite loops, parallel database writes, and conditional branching. UML Sequence Diagrams provide a robust solution for modeling these complexities through Combined Fragments.

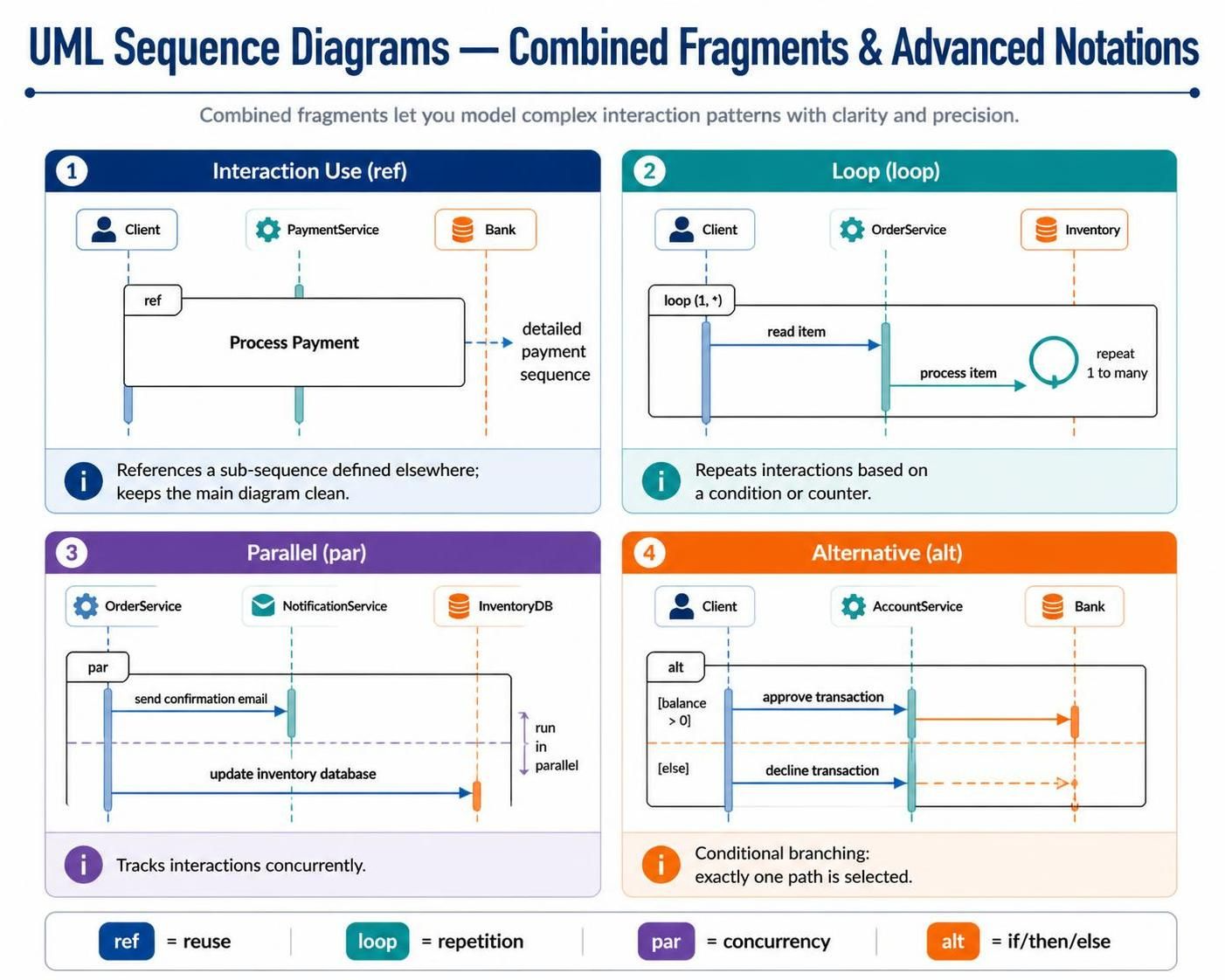

Combined fragments allow you to encapsulate specific behavioral patterns within a single diagram frame, keeping your architecture models clean and precise. In this tutorial, we will explore how to leverage Interaction Use, Loop, Parallel, and Alternative fragments to build professional-grade system models using Visual Paradigm.

1. Interaction Use (ref): Modularizing Complexity

As systems grow, sequence diagrams can become cluttered with hundreds of interaction lines. To maintain readability, UML introduces the Interaction Use fragment (often labeled as ref).

• Symbol: A box with ref in the top-left corner.
• Function: It references an entire sub-sequence defined in a separate diagram.
• Best Practice: When you have a complex operation like “Process Payment” that spans 50+ steps, do not draw them all on the main overview diagram. Instead, create a “Process Payment” sub-diagram and use a ref box to reference it.

This approach keeps your high-level architecture diagrams clean and allows you to drill down into specific details only when necessary.

2. Loop (loop): Handling Repetition

Systems frequently need to iterate over collections, retry failed operations, or poll for status updates. The Loop fragment handles these repetitive scenarios.

• Symbol: A box with loop (min, max) in the top-left corner.
• Function: Repeats the enclosed interactions based on a condition or counter.
• Example: loop (1, ) indicates the action repeats at least once, potentially infinitely. This is perfect for modeling a “Retry” mechanism or iterating through a list of unknown size.

3. Parallel (par): Modeling Concurrency

Modern distributed systems often perform multiple tasks simultaneously to optimize performance. The Parallel fragment (or par) allows you to model these concurrent tracks.

• Symbol: A box with par in the top-left corner, divided by horizontal dashed lines.
• Function: Indicates that the enclosed interaction tracks occur independently and concurrently.
• Use Case: A classic example is sending a confirmation email to a user while simultaneously updating the inventory database. These two events don’t block each other; they happen at the same time.

4. Alternative (alt): Conditional Branching

Logic often dictates that a system must choose a path based on the current state of data. The Alternative fragment models this “If/Then/Else” logic.

• Symbol: A box with alt in the top-left corner, divided into sections.
• Function: Models conditional branching. Only one path is executed based on a guard condition (e.g., [balance > 0]).
• Crucial Distinction: Unlike the opt (option) fragment, alt requires that one of the paths must be chosen. There is no “skip” option. This is ideal for modeling strict validation logic where a transaction is either approved or declined.

Tooling: Visual Paradigm

To effectively design and manage these advanced UML notations, professional-grade tooling is essential. Visual Paradigm offers a comprehensive suite for creating, managing, and documenting complex system architectures.

With Visual Paradigm, you can:

• Drag-and-Drop Modeling: Easily add ref, loop, par, and alt frames to your sequence diagrams with a single click.
• Visual Clarity: The tool automatically manages the layout of combined fragments, ensuring that parallel tracks and loop iterations are visually distinct and easy to read.
• Code Generation: Once your model is complete, Visual Paradigm can generate the underlying boilerplate code for your chosen language, ensuring your documentation matches your implementation.
